6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1

Name: 6 Way Pin TE Connectivity AMP Connectors AMP HDSCS Series 114184691
Brand: YBADDVANCE
Price: 1 USD

China 6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1 wholesale

Brand Name : YBADDVANCE

Model Number : 1-1418469-1

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Black

P/N : 1-1418469-1

Martial : PBT/PA66

Feature : Waterproof

Type : AMP connector

HS code : 8536909000

Way : 6 hole

Width : 43 mm

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6 Way/Pin AMP HDSCS Series TE Connectivity Waterproof Connector 1-1418469-1

Description

These HDSCS receptacle connector housings feature integrated secondary locks which conform contact alignment and retention producing an audible click when in the fully locked position. A slide lock assists with the mating and unmating process and provides a secure mating connection. The housings feature polarization and keying to prevent mismating and have a low mating force.

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

Specification

Item name	6 Way/Pin AMP HDSCS Series TE Connectivity Waterproof Connector 1-1418469-1
P/N	1-1418469-1
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin AMP Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

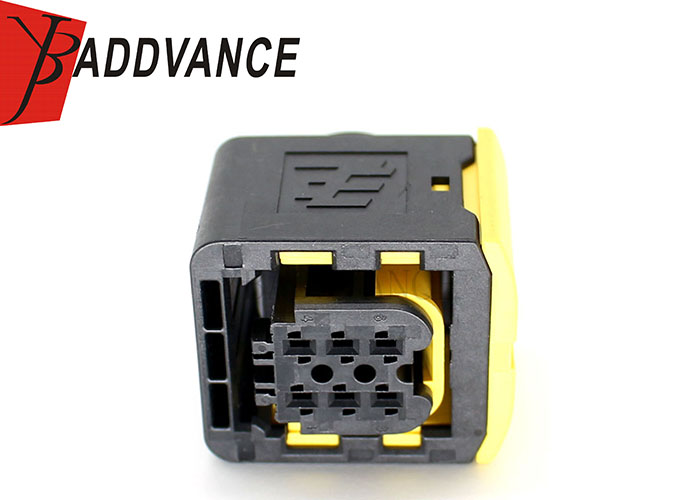

Product Picture Details

6 Way / Pin TE Connectivity AMP Connectors AMP HDSCS Series 1-1418469-1
